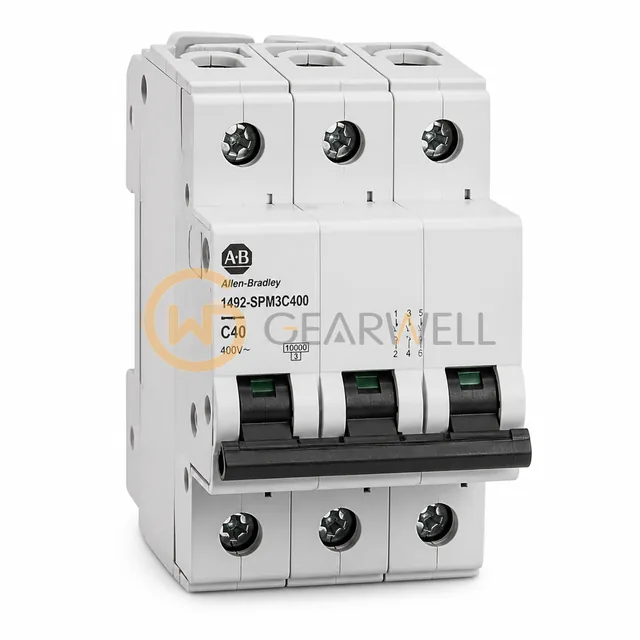

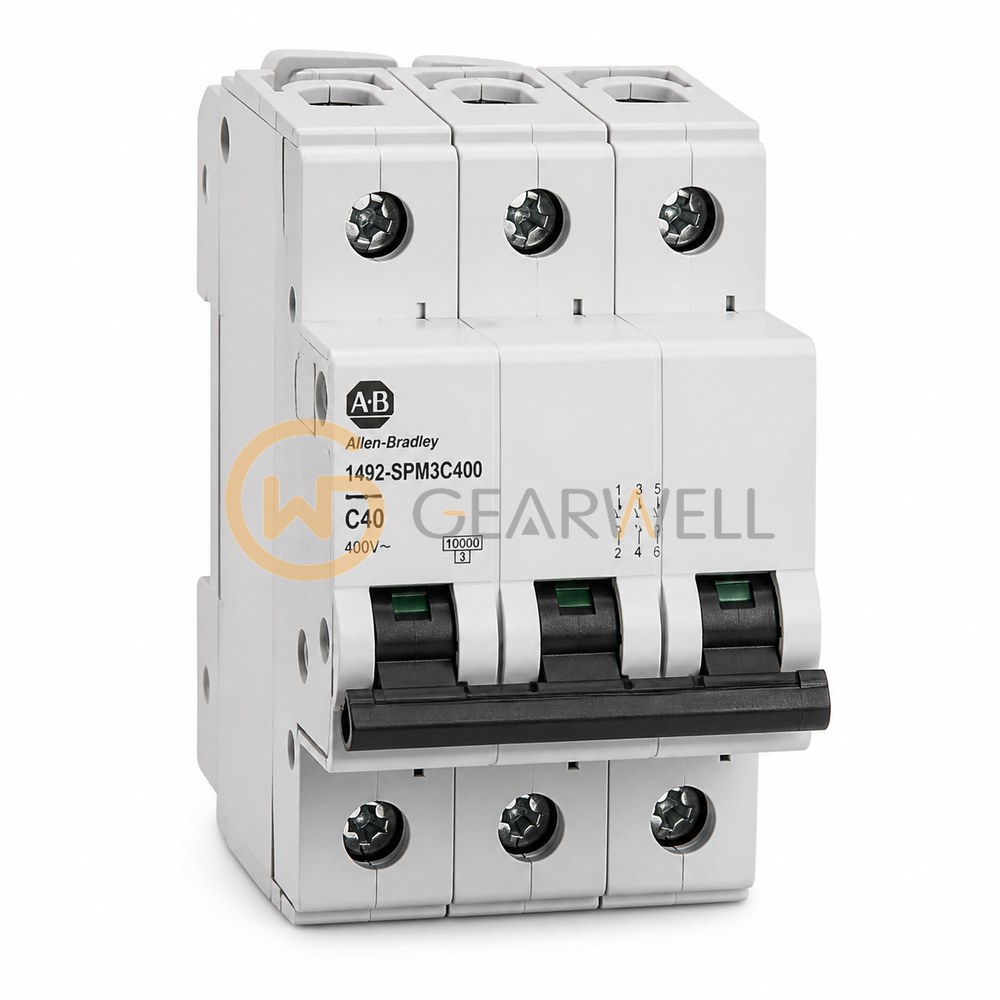

Allen-Bradley 1492SPM3C400 40 A 3-Pole Supplementary Protector
- Brand
- Allen-Bradley
- Model
- 1492SPM3C400
- GEARWELL SKU
- GWP-000003976
- Category
- Circuit Protection
Key specifications
- Number of poles
- 3
- Rated current
- 40 A
- Trip curve
- C
- Product type
- Miniature supplementary circuit protector
- Lifecycle status
- Active
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley 1492-SPM3C400 is a Bulletin 1492-SP supplementary protector, 3-pole, trip curve C (5…10 x In, for inductive loads), rated 40 A. Per UL 1077 it is rated 480Y/277V AC with 5 kA AC interrupting capacity; per IEC/EN 60947-2 it is rated 400V AC with 15 kA Icu. Power loss is 4.5 W per pole. It mounts on a 35 mm DIN rail, each pole is 17.5 mm wide, and it is rated for -25…+55 °C ambient.
Technical reference
| Product name | Allen-Bradley 1492SPM3C400 40 A 3-Pole Supplementary Protector |
|---|---|
| Brand | Allen-Bradley |
| Model | 1492SPM3C400 |
| Category | Circuit Protection |
| Number of poles | 3 |
| Rated current | 40 A |
| Trip curve | C |
| Product type | Miniature supplementary circuit protector |
| Lifecycle status | Active |
| Product description | Bulletin 1492-SPM Supplemental Circuit Breaker, 3-Pole, Trip Curve C, 40A, No Neutral |
| Neutral configuration | No neutral |
