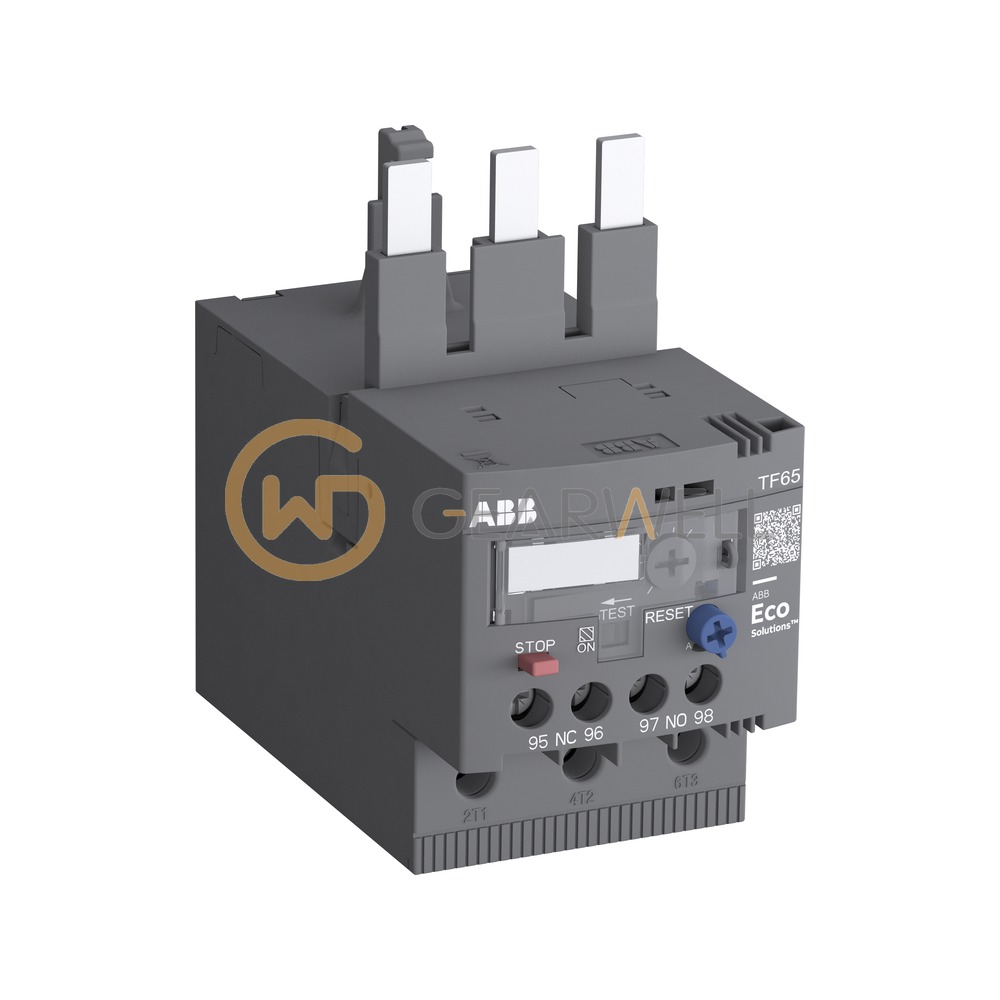

ABB TF65-40 Thermal Overload Relay 30-40 A
- Brand
- ABB
- Model
- TF65-40
- GEARWELL SKU
- GWP-000011176
- Category
- Contactors & Starters
Key specifications
- Net weight
- 0.372 kg
- Product ID
- 1SAZ811201R1003
- Suitable for
- AF40, AF52, AF65
- Setting range
- 30 ... 40 A
- Number of poles
- 3P
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB TF65-40 is a thermal overload relay (order code 1SAZ811201R1003) with a setting range of 30...40 A, a screw-terminal version for mounting on AF40, AF52 and AF65 contactors; weight is 0.456 kg. It has trip class 10 and a rated operational voltage of 690 V AC (IEC).
Technical reference
| Product name | ABB TF65-40 Thermal Overload Relay 30-40 A |
|---|---|
| Brand | ABB |
| Model | TF65-40 |
| Category | Contactors & Starters |
| Net weight | 0.372 kg |
| Product ID | 1SAZ811201R1003 |
| Suitable for | AF40, AF52, AF65 |
| Setting range | 30 ... 40 A |
| Number of poles | 3P |
| Auxiliary contacts | 1 NO + 1 NC |
| Dimensions (W x H x D) | 54.9 x 101.4 x 106.9 mm |
| Rated operational voltage (main circuit) | 690 V AC |
