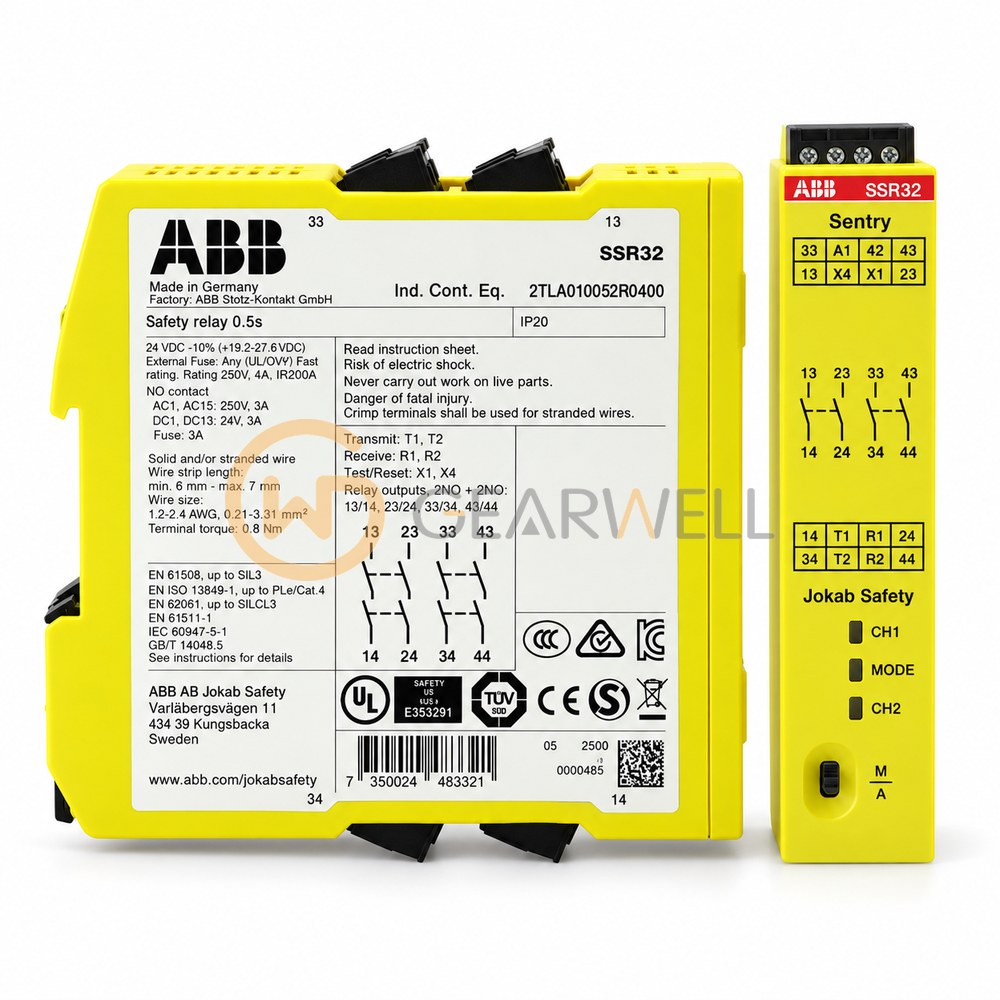

ABB Sentry SSR32 Safety Relay
- Brand
- ABB
- Model
- SSR32
- GEARWELL SKU
- GWP-000004465
- Category
- Relays & Controllers
Key specifications
- Off-delay
- 0.5 s
- Dimensions
- 120 x 22.5 x 120 mm
- Application
- Machine safety circuits, interlock control and maintenance replacement
- Power supply
- 24 VDC
- Product type
- ABB Sentry safety relay
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB SSR32 is the ABB Sentry SSR32 safety relay (order code 2TLA010052R0400) for +24 VDC (PELV/SELV) supply, with 2 NO + 2 NO relay outputs in two relay groups; the second group can be controlled with timer settings. Outputs are rated 3A at 250 VAC and +24 VDC, internal consumption is 6W and a 4 A gG fuse is required. It mounts on a 35 mm DIN rail, is rated IP20, operates at -25°C – +65°C and weighs 190 – 230 g.
Technical reference
| Product name | ABB Sentry SSR32 Safety Relay |
|---|---|
| Brand | ABB |
| Model | SSR32 |
| Category | Relays & Controllers |
| Off-delay | 0.5 s |
| Dimensions | 120 x 22.5 x 120 mm |
| Application | Machine safety circuits, interlock control and maintenance replacement |
| Power supply | 24 VDC |
| Product type | ABB Sentry safety relay |
| Relay outputs | 2 NO + 2 delayed NO |
| Catalog number | 2TLA010052R0400 |
| Ingress protection | IP20 |
