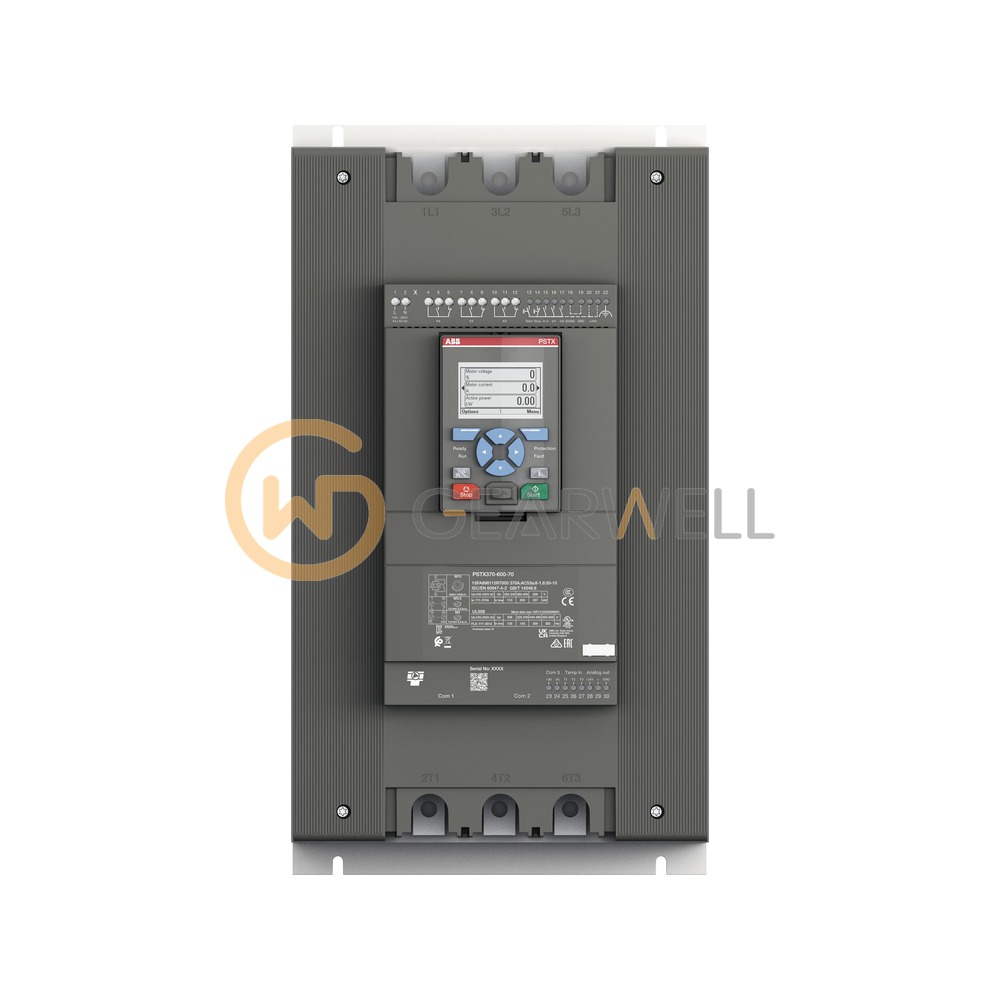

ABB PSTX370-600-70 PSTX softstarters Softstarter
- Brand
- ABB
- Model
- PSTX370-600-70
- GEARWELL SKU
- GWP-000014695
- Category
- Contactors & Starters
Key specifications
- Weight
- 15.5 kg
- Rated operational voltage
- 208 ... 600 V AC
- Rated control supply voltage
- 100 ... 250 V AC
- Rated power in-line at 400 V
- 200 kW
- Rated operational current, in-line
- 370 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB PSTX370-600-70 is a PSTX softstarter (order code 1SFA898115R7000) for normal starts in-line, rated 370 A and 200 kW at 400 V and 257 kW at 500 V (IEC), and 361 FLA, 300 hp at 440/480 V and 350 hp at 550/600 V (UL/CSA). Rated operational voltage is 208...600 V, control supply is 100...250 V AC, 50/60 Hz, and net weight is 15.5 kg.
Technical reference
| Product name | ABB PSTX370-600-70 PSTX softstarters Softstarter |
|---|---|
| Brand | ABB |
| Model | PSTX370-600-70 |
| Category | Contactors & Starters |
| Weight | 15.5 kg |
| Rated operational voltage | 208 ... 600 V AC |
| Rated control supply voltage | 100 ... 250 V AC |
| Rated power in-line at 400 V | 200 kW |
| Rated operational current, in-line | 370 A |
| Rated operational current, inside delta | 640 A |
