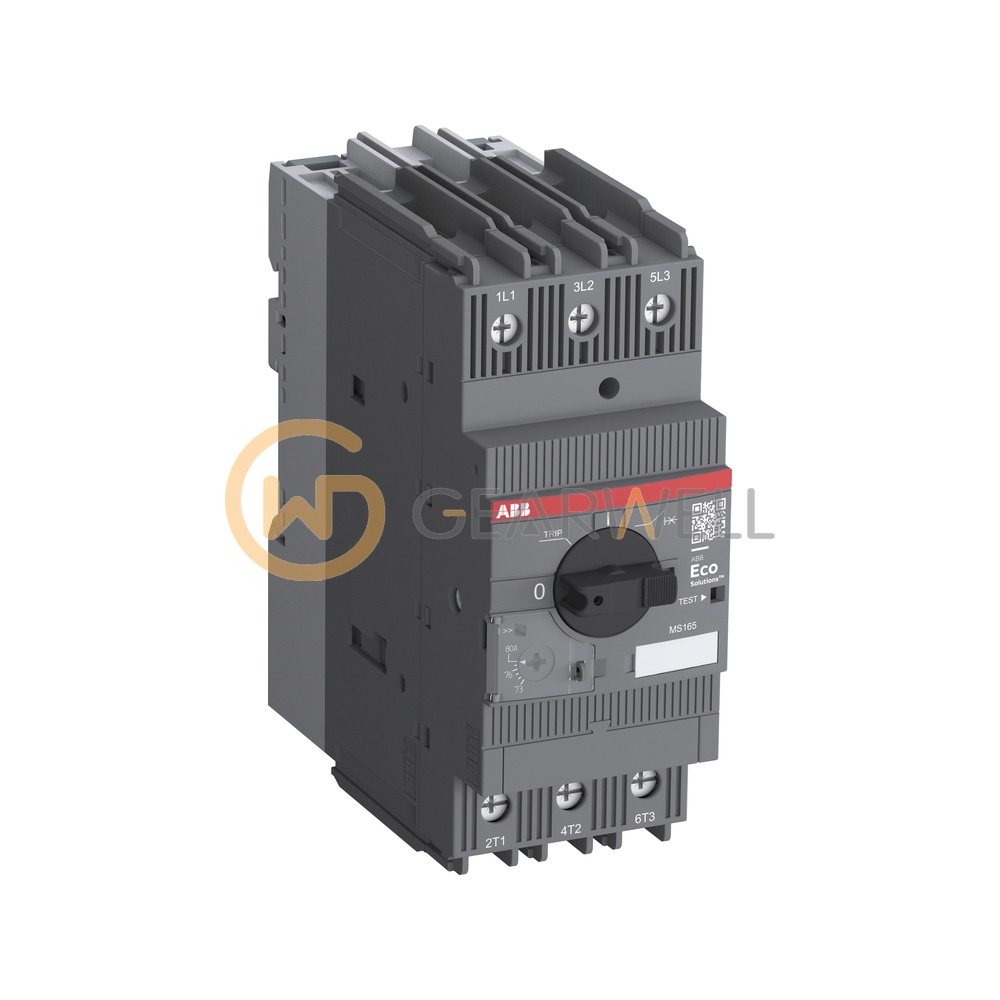

ABB MS165-25 MS165 Manual Motor Starter 18 ... 25 A
- Brand
- ABB
- Model
- MS165-25
- GEARWELL SKU
- GWP-000007773
- Category
- Contactors & Starters
Key specifications
- Width
- 55 mm
- Net weight
- 0.96 kg
- Product ID
- 1SAM451000R1013
- Setting range
- 18 ... 25 A
- Instantaneous short-circuit current setting
- 375 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB MS165-25 is a manual motor starter (order code 1SAM451000R1013) with a setting range of 18 ... 25 A, for motors of 11 kW at 400 V AC-3. It protects motors fuseless against short-circuits, overloads and phase failures, with trip class 10, phase loss sensitivity, temperature compensation from -25 … +60 °C, a disconnect function and a lockable handle; weight is 0.96 kg.
Technical reference
| Product name | ABB MS165-25 MS165 Manual Motor Starter 18 ... 25 A |
|---|---|
| Brand | ABB |
| Model | MS165-25 |
| Category | Contactors & Starters |
| Width | 55 mm |
| Net weight | 0.96 kg |
| Product ID | 1SAM451000R1013 |
| Setting range | 18 ... 25 A |
| Instantaneous short-circuit current setting | 375 A |
| Ultimate short-circuit breaking capacity Icu (400 V AC) | 100 kA |
