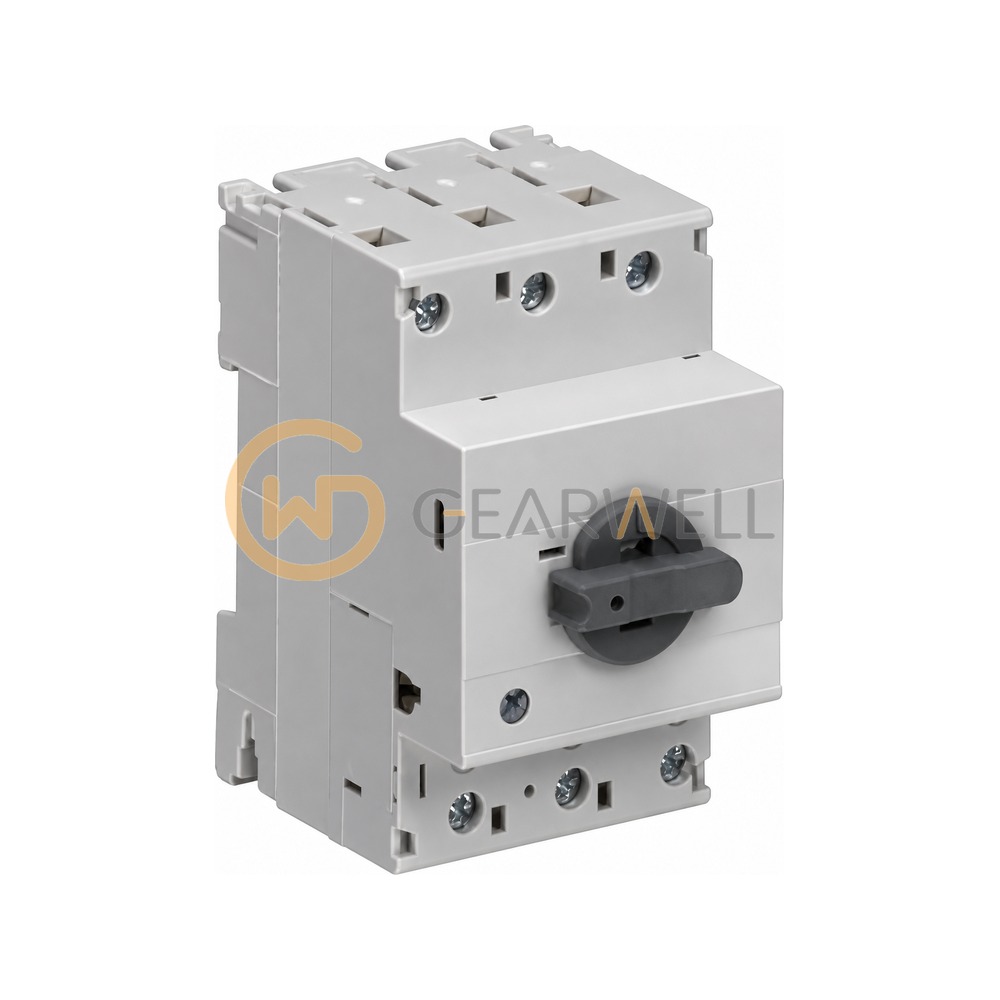

ABB MO325-25 MO325 manual motor starters Manual motor starter, magnetic only
- Brand
- ABB
- Model
- MO325-25
- GEARWELL SKU
- GWP-000014665
- Category
- Circuit Protection
Key specifications
- Width
- 54 mm
- Weight
- 0.370 kg
- Standards
- IEC/EN 60947, UL 508
- Rated operational current Ie
- 25 A
- Instantaneous release current
- 375 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB MO325-25 is a magnetic-only manual motor starter (order code 1SAM160000R1014) set at 25.0 A, used to switch motors manually ON/OFF and protect them fuseless against short-circuits. Starter combinations are set up together with contactors and overload relays; it has a disconnect function and trip-free mechanism, a power loss of 1.7 W per pole and weighs 0.370 kg.
Technical reference
| Product name | ABB MO325-25 MO325 manual motor starters Manual motor starter, magnetic only |
|---|---|
| Brand | ABB |
| Model | MO325-25 |
| Category | Circuit Protection |
| Width | 54 mm |
| Weight | 0.370 kg |
| Standards | IEC/EN 60947, UL 508 |
| Rated operational current Ie | 25 A |
| Instantaneous release current | 375 A |
| Short-circuit breaking capacity at 400 V AC | 50 kA |
