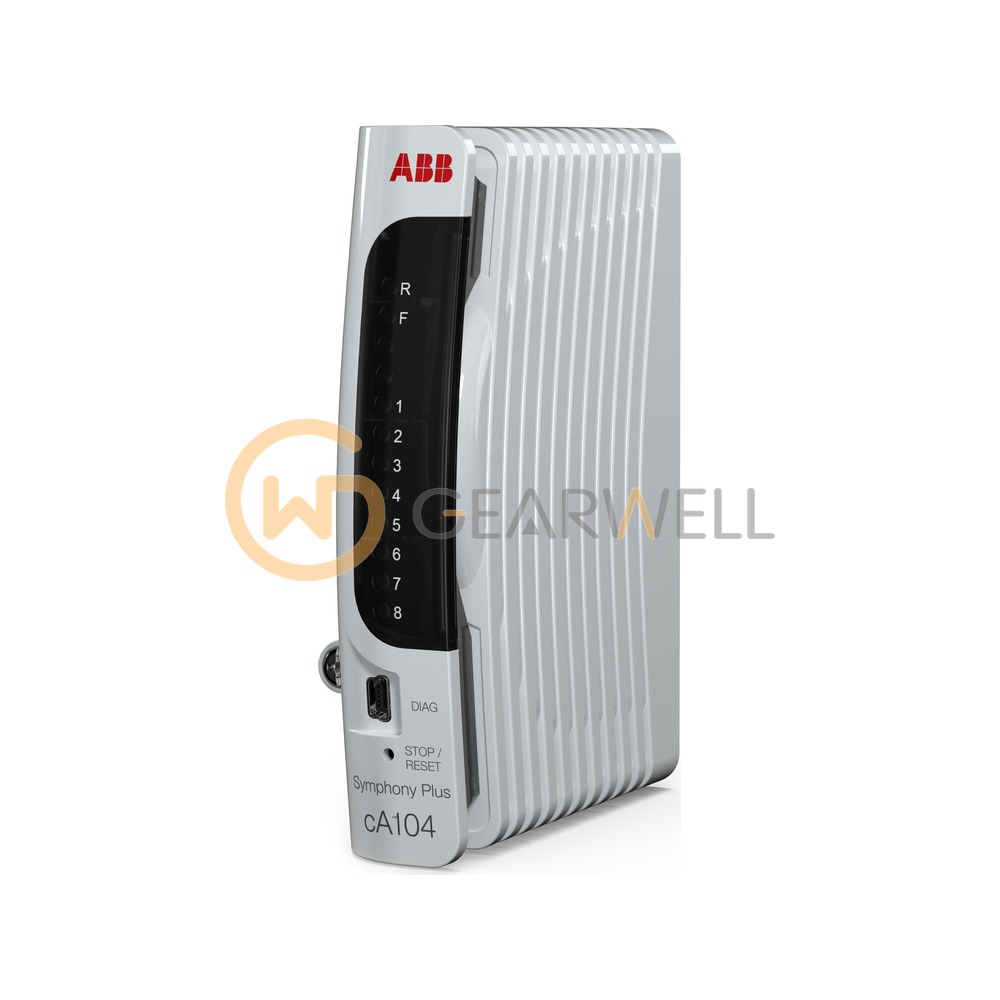

ABB cAI04 Symphony Plus SD Series Compact I/O TC / mV input module
- Brand
- ABB
- Model
- cAI04
- GEARWELL SKU
- GWP-000014530
- Category
- PLCs & I/O
Key specifications
- Base
- cxBS01-CJC
- Isolation
- Group isolated
- Input type
- mV and thermocouple
- Channel type
- AI
- Product net width
- 38.1 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB cAI04 is the Symphony Plus SD Series compact cAI04 analog input module, which processes up to 8 thermocouple or millivolt field inputs. The controller configures it with function code 221 (I/O Device Definition) and function code 222 (Analog In/Channel). It is used with the cHBS01-CJC or cVBS01-CJC base.
Technical reference
| Product name | ABB cAI04 Symphony Plus SD Series Compact I/O TC / mV input module |
|---|---|
| Brand | ABB |
| Model | cAI04 |
| Category | PLCs & I/O |
| Base | cxBS01-CJC |
| Isolation | Group isolated |
| Input type | mV and thermocouple |
| Channel type | AI |
| Product net width | 38.1 mm |
| Product net height | 127 mm |
| Number of input channels | 8 |
| Product net depth/length | 120.65 mm |
