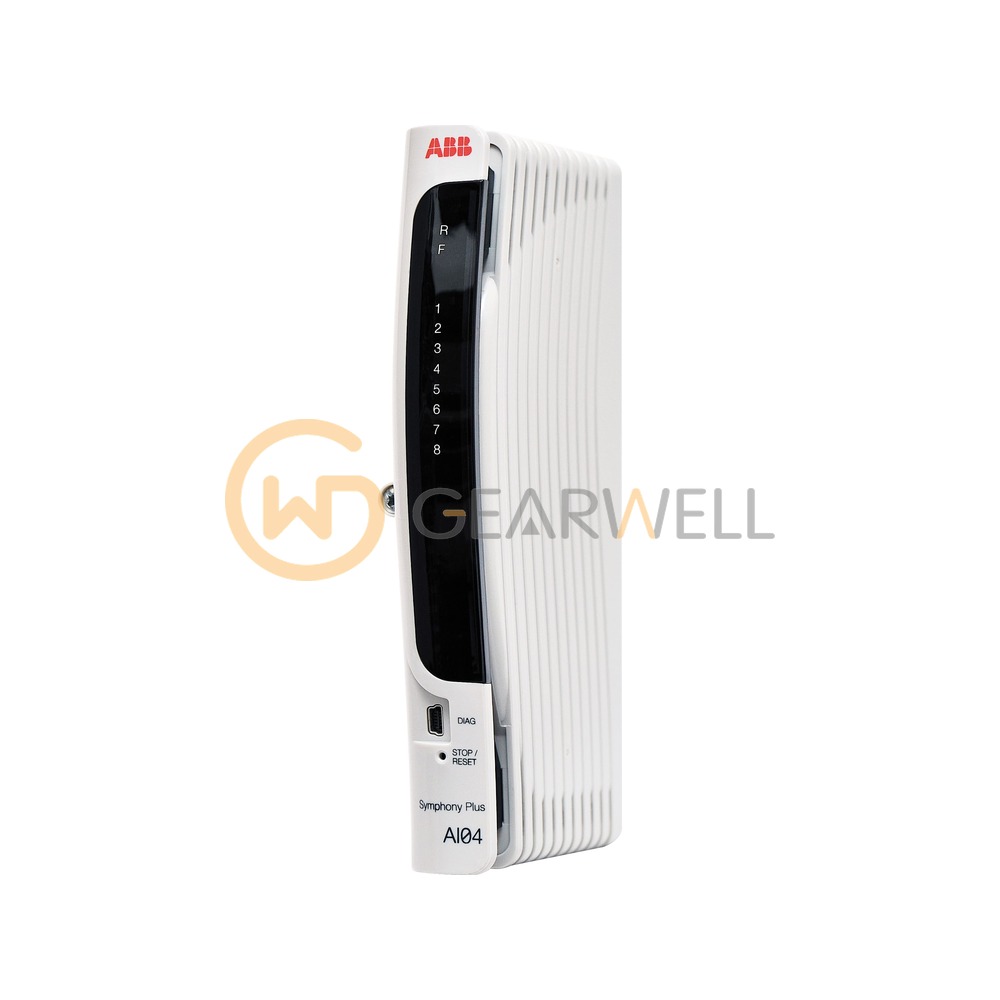

ABB AI04 Symphony Plus SD Series I/O Analog input module, 16 ch TC/mV
- Brand
- ABB
- Model
- AI04
- GEARWELL SKU
- GWP-000014525
- Category
- PLCs & I/O
Key specifications
- Base
- xBS01-CJC
- Isolation
- 2 x 8 ch group isolated
- Net weight
- 0.228 kg
- Input types
- TC E, J, K, R, S, T, B, L, N, U, Chinese E/S; 0-100 mV, ±100 mV
- Dimensions (L x H x W)
- 190 x 118 x 34 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB AI04 is the Symphony Plus SD Series AI04 analog input module, which processes 16 thermocouple or millivolt field inputs, each individually programmable, with automatic calibration and compensation. Cold junction compensation is done by RTDs embedded in the module base or by a user-configured application input. It is used with the HBS01-CJC or VBS01-CJC base.
Technical reference
| Product name | ABB AI04 Symphony Plus SD Series I/O Analog input module, 16 ch TC/mV |
|---|---|
| Brand | ABB |
| Model | AI04 |
| Category | PLCs & I/O |
| Base | xBS01-CJC |
| Isolation | 2 x 8 ch group isolated |
| Net weight | 0.228 kg |
| Input types | TC E, J, K, R, S, T, B, L, N, U, Chinese E/S; 0-100 mV, ±100 mV |
| Dimensions (L x H x W) | 190 x 118 x 34 mm |
| Number of input channels | 16 |
