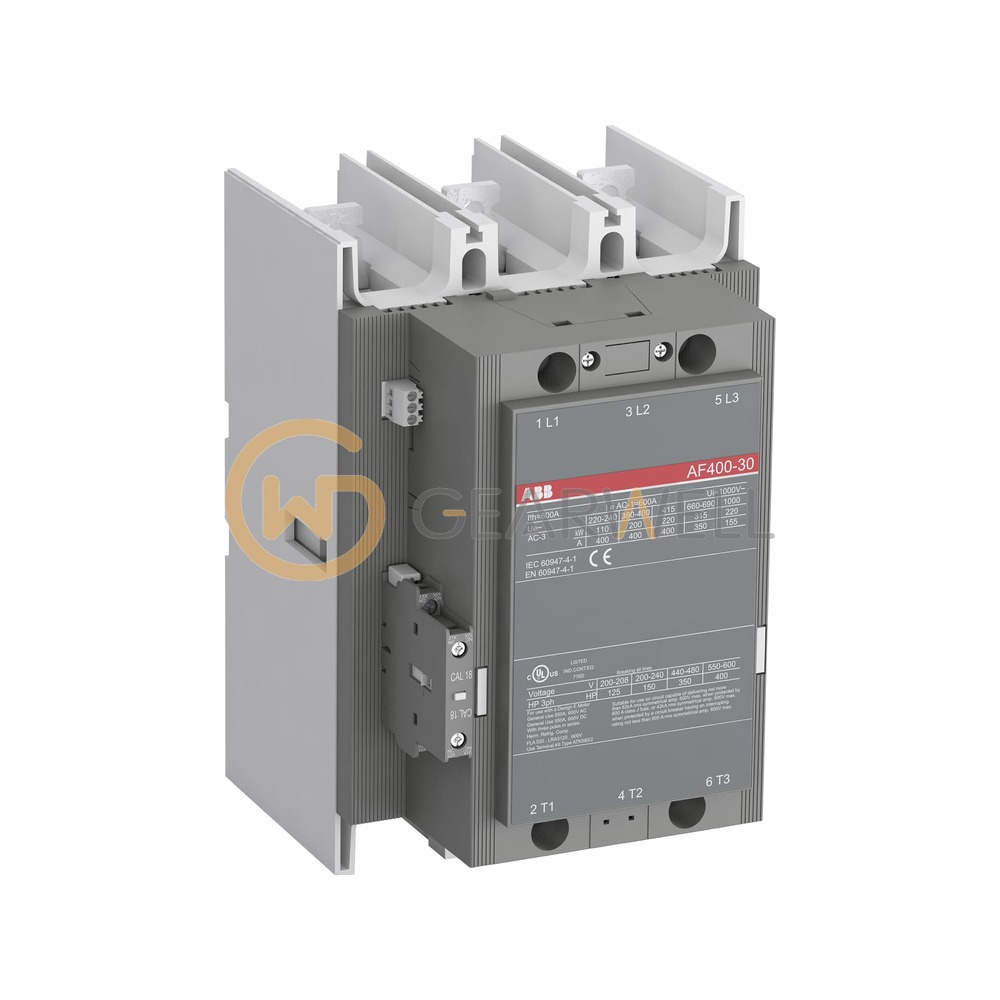

ABB AF400-30-11 3-Pole Contactor 100-250 V AC/DC
- Brand
- ABB
- Model
- AF400-30-11
- GEARWELL SKU
- GWP-000007768
- Category
- Contactors & Starters
Key specifications
- Net weight
- 10.6 kg
- Product ID
- 1SFL577001R9100
- Coil voltage
- 100-250 V AC/DC
- Number of poles
- 3P
- Auxiliary contacts
- 1 NO + 1 NC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB AF400-30-11 is an AF400 3-pole contactor with 1 N.O. + 1 N.C. auxiliary contacts, rated 200 kW at 400 V AC-3 and 600 A AC-1 at 690 V (IEC), and 350 hp at 480 V and 550 A general use at 600 V AC (UL/CSA). Its electronic coil interface comes in 4 coils, 24…60 V DC (suffix -68), 48…130, 100…250 and 250…500 V AC/DC; the 100…250 V version is AF400-30-11-70 (1SFL577001R7011). Built-in surge suppression, for 3-phase motors and power circuits up to 1000 V AC.
Technical reference
| Product name | ABB AF400-30-11 3-Pole Contactor 100-250 V AC/DC |
|---|---|
| Brand | ABB |
| Model | AF400-30-11 |
| Category | Contactors & Starters |
| Net weight | 10.6 kg |
| Product ID | 1SFL577001R9100 |
| Coil voltage | 100-250 V AC/DC |
| Number of poles | 3P |
| Auxiliary contacts | 1 NO + 1 NC |
| Rated operational voltage (main circuit) | 1000 V |
| Rated operational current AC-1 (690 V, 40 °C) | 600 A |
| Rated operational current AC-3 (415 V, 55 °C) | 400 A |
