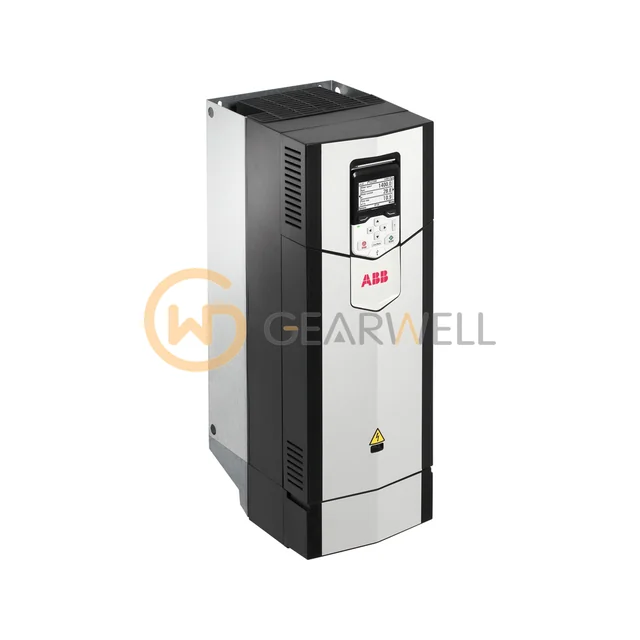

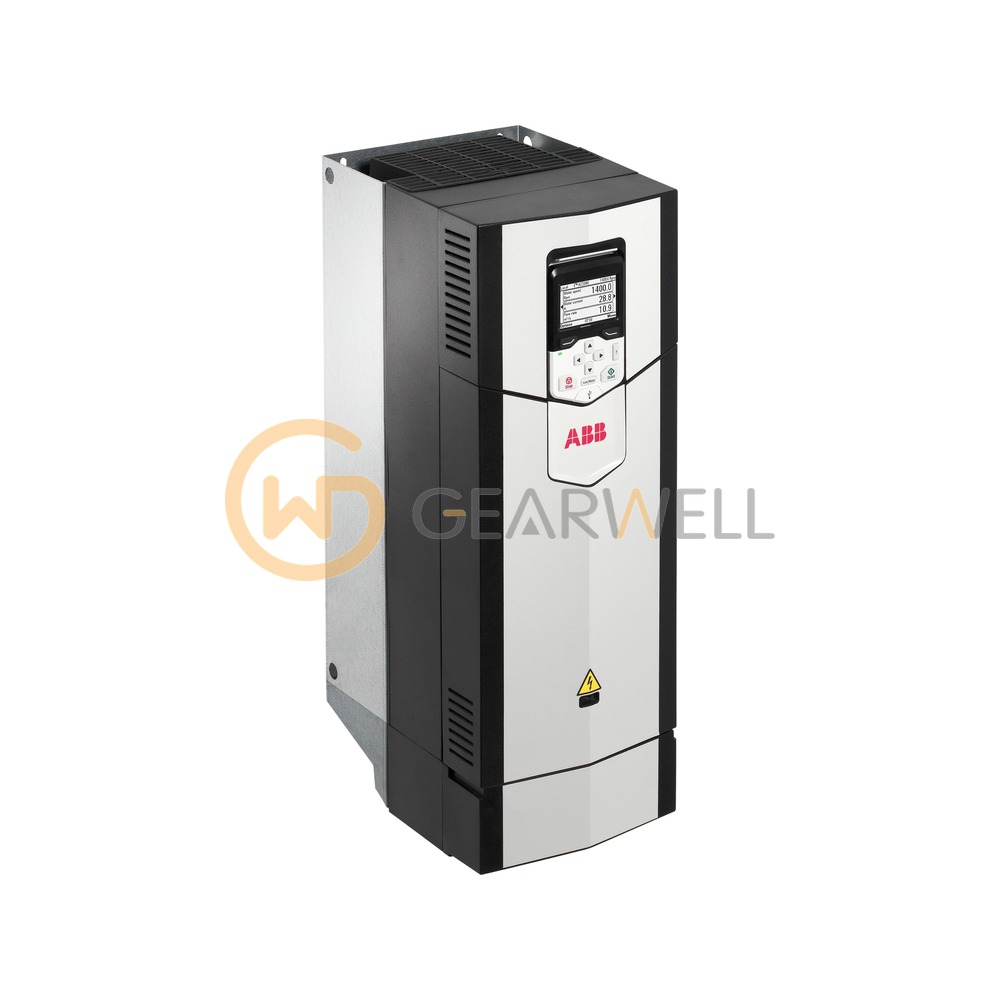

ABB ACS880-01-061A-3 ACS880 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS880-01-061A-3
- GEARWELL SKU
- GWP-000007757
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R4
- Net weight
- 18.5 kg
- Product ID
- 3ABD00032627-D
- Degree of protection
- IP21
- Dimensions (W x H x D)
- 203 x 576 x 274 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS880-01-061A-3 is an ACS880-01 wall-mounted single drive for 380–415 V three-phase supplies, frame R4, rated 30 kW nominal power and 22 kW in heavy-duty use at 400 V. ABB builds the ACS880-01 with a harmonic filtering choke and a brake chopper as standard and IP21 as the standard enclosure for wall mounting; IP55, EMC filters, communication adapters and functional safety modules are available as options.
Technical reference
| Product name | ABB ACS880-01-061A-3 ACS880 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS880-01-061A-3 |
| Category | Variable Frequency Drives |
| Frame size | R4 |
| Net weight | 18.5 kg |
| Product ID | 3ABD00032627-D |
| Degree of protection | IP21 |
| Dimensions (W x H x D) | 203 x 576 x 274 mm |
| Output power (normal use) | 30 kW |
| Output current (normal use) | 61 A |
