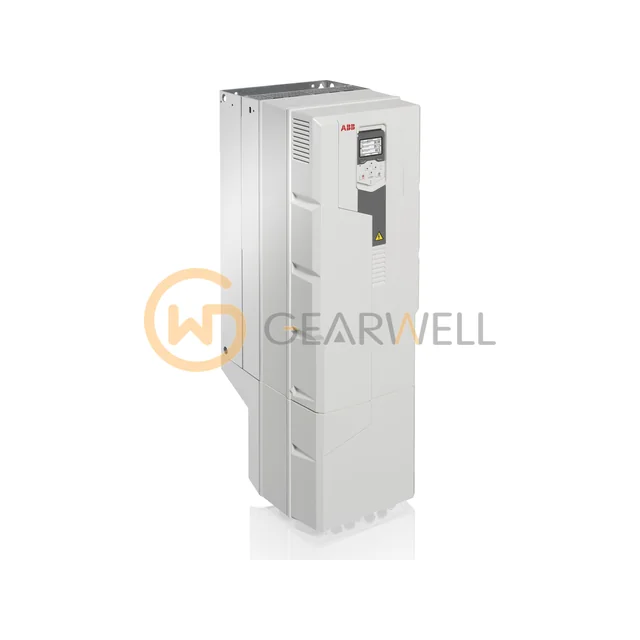

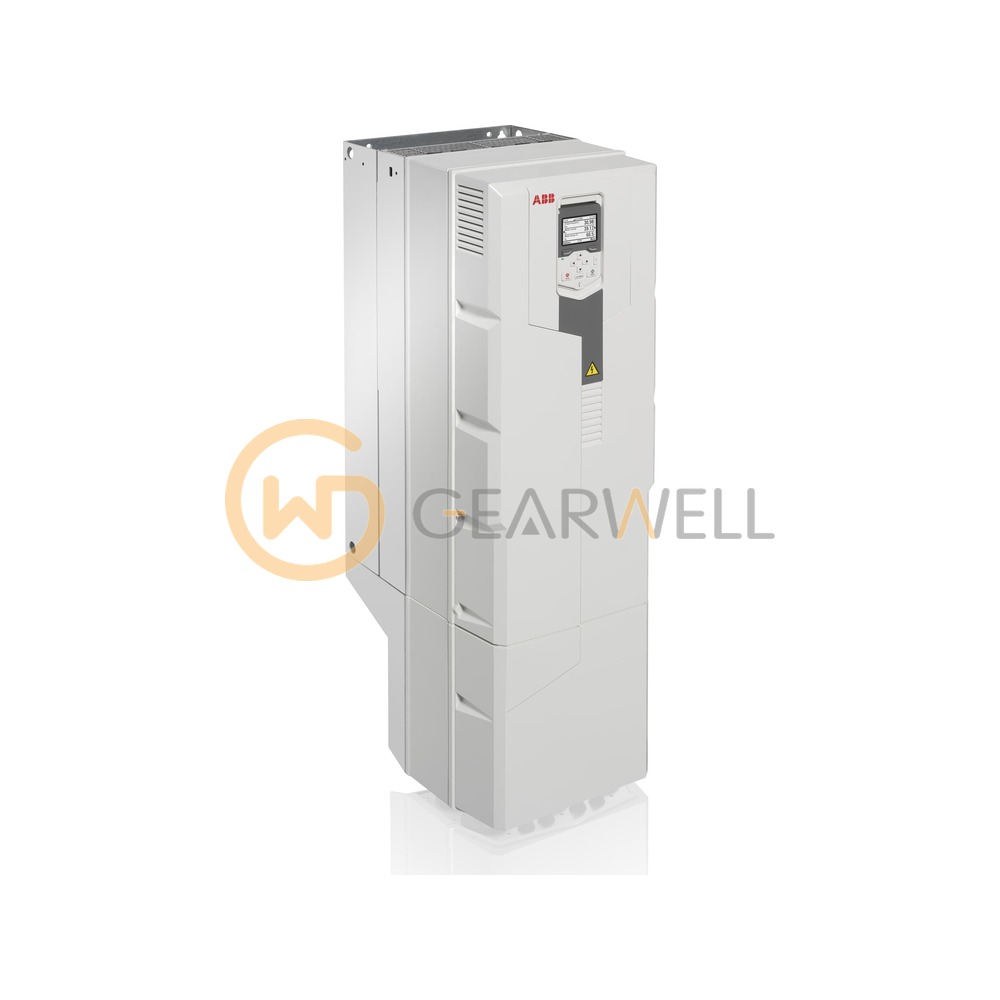

ABB ACS580-01-246A-4 ACS580 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS580-01-246A-4
- GEARWELL SKU
- GWP-000007745
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R8
- Net weight
- 69 kg
- Product ID
- 3ABD00045440-D
- Degree of protection
- IP21
- Dimensions (W x H x D)
- 300 x 965 x 393 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS580-01-246A-4 is an ACS580-01 wall-mounted general purpose drive for 380–480 V three-phase supplies, frame R8, rated 132 kW nominal power and 110 kW in heavy-duty use at 400 V (200 hp light-duty and 150 hp heavy-duty at 480 V). ABB designs the ACS580-01 as an all-in-one drive with the EMC filter, harmonic mitigation and an assistant control panel inside, plus built-in Modbus RTU and Safe Torque Off; IP21 is standard and IP55 is option +B056.
Technical reference
| Product name | ABB ACS580-01-246A-4 ACS580 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS580-01-246A-4 |
| Category | Variable Frequency Drives |
| Frame size | R8 |
| Net weight | 69 kg |
| Product ID | 3ABD00045440-D |
| Degree of protection | IP21 |
| Dimensions (W x H x D) | 300 x 965 x 393 mm |
| Output power (normal use) | 132 kW |
| Output current (normal use) | 246 A |
