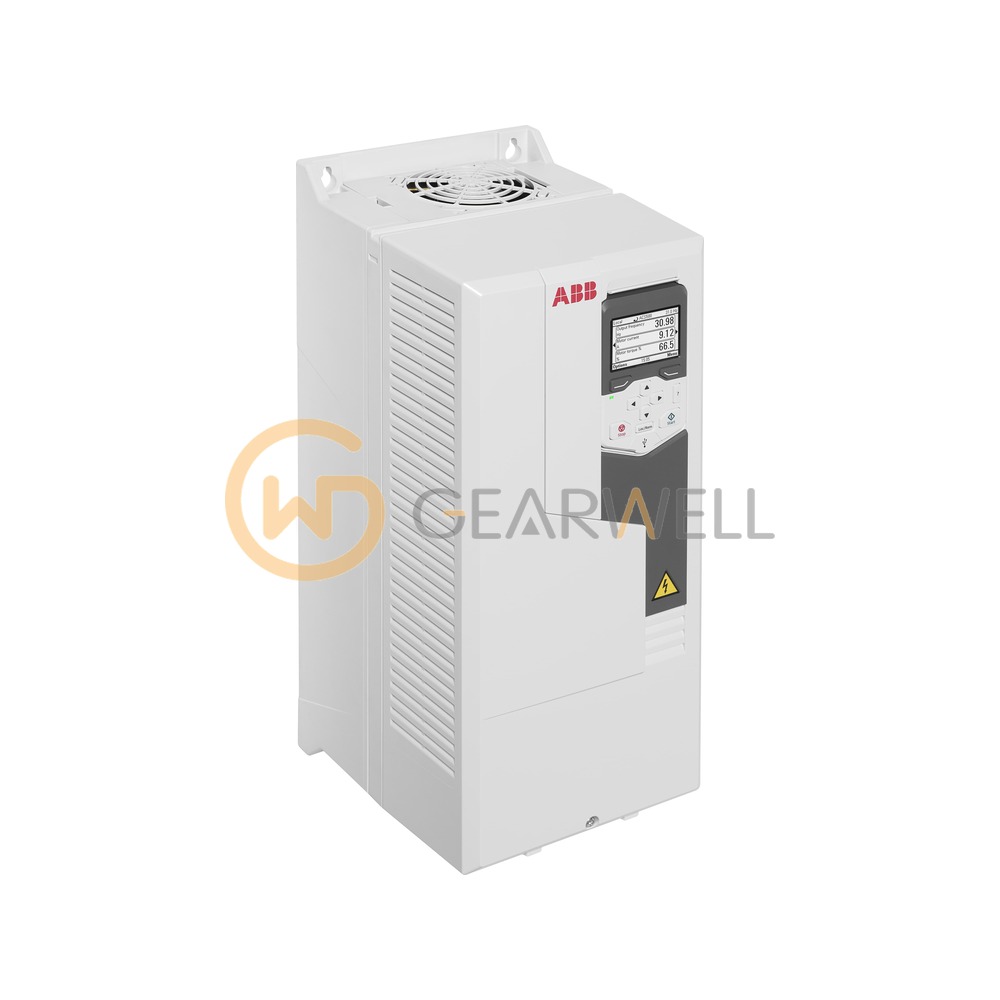

ABB ACS580-01-046A-4 Wall-Mounted AC Drive
- Brand
- ABB
- Model
- ACS580-01-046A-4
- GEARWELL SKU
- GWP-000011203
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R3
- Input phases
- 3-phase
- ABB product ID
- 3AXD50000038963
- Input frequency
- 47.5 ... 63 Hz
- Input voltage Uin
- 380 ... 480 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS580-01-046A-4 is an ACS580-01 wall-mounted general purpose drive for 380–480 V three-phase supplies, frame R3, rated 22 kW nominal power and 18.5 kW in heavy-duty use at 400 V (30 hp light-duty and 25 hp heavy-duty at 480 V). ABB designs the ACS580-01 as an all-in-one drive with the EMC filter, harmonic mitigation and an assistant control panel inside, plus built-in Modbus RTU and Safe Torque Off; IP21 is standard and IP55 is option +B056.
Technical reference
| Product name | ABB ACS580-01-046A-4 Wall-Mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS580-01-046A-4 |
| Category | Variable Frequency Drives |
| Frame size | R3 |
| Input phases | 3-phase |
| ABB product ID | 3AXD50000038963 |
| Input frequency | 47.5 ... 63 Hz |
| Input voltage Uin | 380 ... 480 V |
| Dimensions (H x W x D) | 490 x 203 x 229 mm |
| Rated output power Pn | 22 kW |
| Rated output current In | 45 A |
| Heavy-duty output power PHD | 18.5 kW |
| Heavy-duty output current IHD | 37.7 A |
