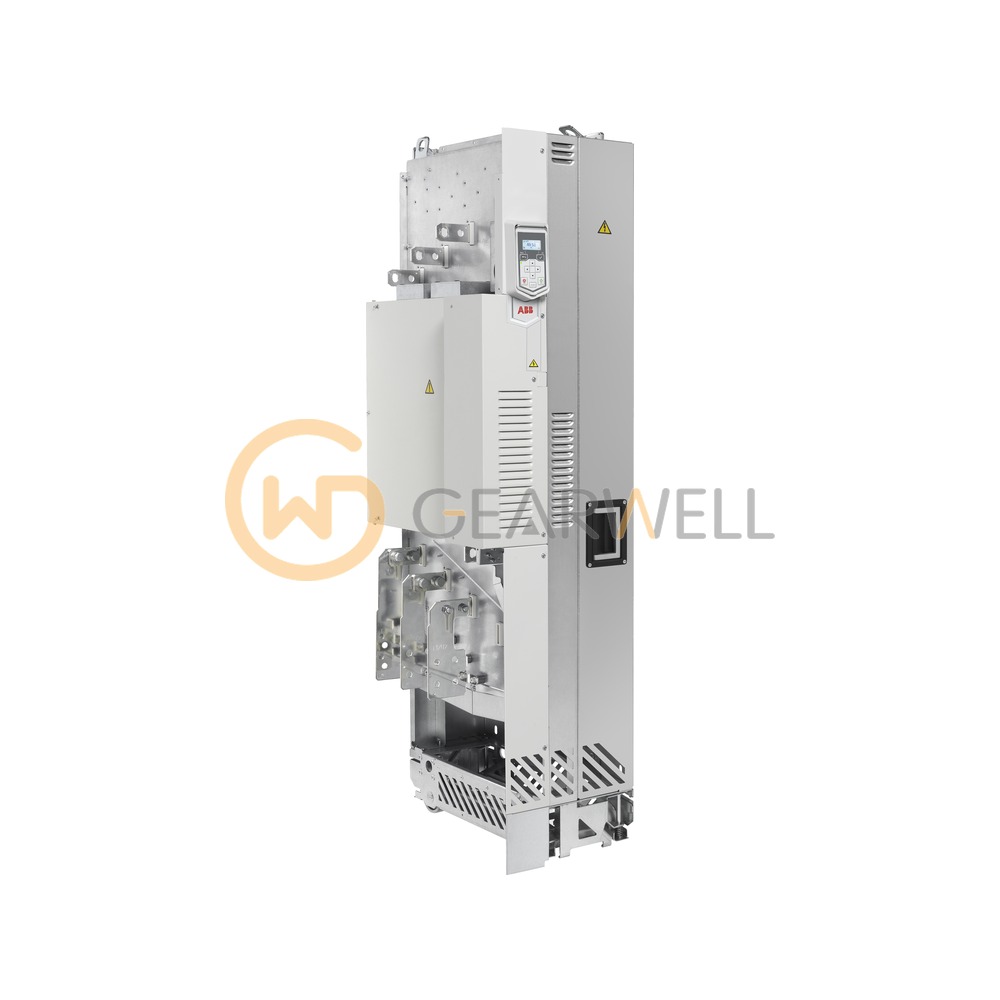

ABB ACS530-04-650A-4 ACS530 AC Drive Module
- Brand
- ABB
- Model
- ACS530-04-650A-4
- GEARWELL SKU
- GWP-000007667
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R10
- Net weight
- 161 kg
- Product ID
- 3ABD00050304-D
- Degree of protection
- IP00
- Dimensions (W x H x D)
- 350 x 1462 x 529 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS530-04-650A-4 is an ACS530-04 general purpose drive module for cabinet installation on 380–480 V three-phase supplies, rated 355 kW in nominal and light-duty use at 400 V (650 A nominal output current), in frame R10. ABB builds in an AC choke, Modbus RTU, Safe torque off and a basic control panel, with an EMC filter available as an option and control macros such as PID and pump and fan control (PFC).
Technical reference
| Product name | ABB ACS530-04-650A-4 ACS530 AC Drive Module |
|---|---|
| Brand | ABB |
| Model | ACS530-04-650A-4 |
| Category | Variable Frequency Drives |
| Frame size | R10 |
| Net weight | 161 kg |
| Product ID | 3ABD00050304-D |
| Degree of protection | IP00 |
| Dimensions (W x H x D) | 350 x 1462 x 529 mm |
| Output power (normal use) | 355 kW |
| Output current (normal use) | 650 A |
