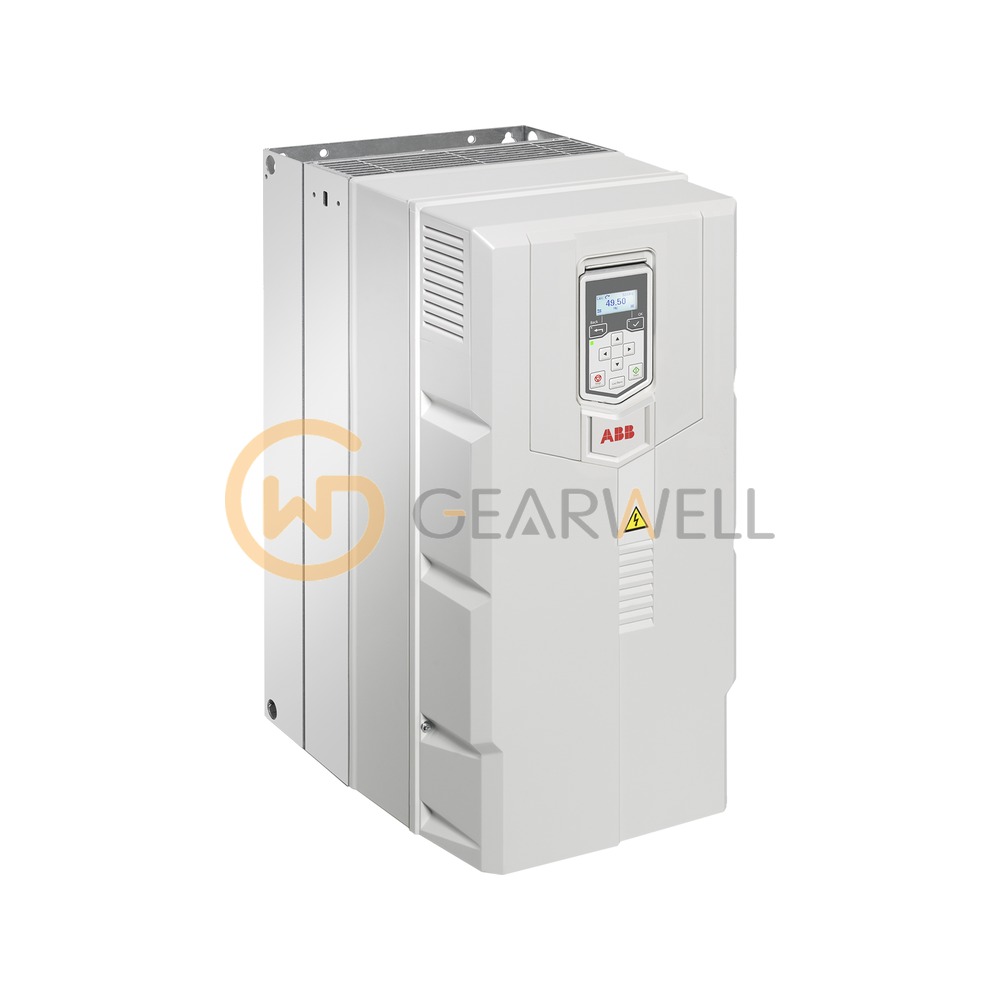

ABB ACS530-01-169A-4 ACS530 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS530-01-169A-4
- GEARWELL SKU
- GWP-000007663
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R7
- Net weight
- 49.6 kg
- Product ID
- 3ABD00039816-D
- Degree of protection
- IP20
- Dimensions (W x H x D)
- 284 x 600 x 370 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS530-01-169A-4 is an ACS530-01 wall-mounted general purpose drive for three-phase 400 V supplies, rated 90 kW in nominal and light-duty use (169 A nominal output current), in frame R7. ABB's basic ACS530-01 configuration is IP20 with an ACS-BP-S basic control panel, a choke, a built-in EMC C2 filter, Safe torque off and coated boards. Options such as an assistant control panel, fieldbus adapters and I/O extensions are added as plus codes.
Technical reference
| Product name | ABB ACS530-01-169A-4 ACS530 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS530-01-169A-4 |
| Category | Variable Frequency Drives |
| Frame size | R7 |
| Net weight | 49.6 kg |
| Product ID | 3ABD00039816-D |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 284 x 600 x 370 mm |
| Output power (normal use) | 90 kW |
| Output current (normal use) | 169 A |
