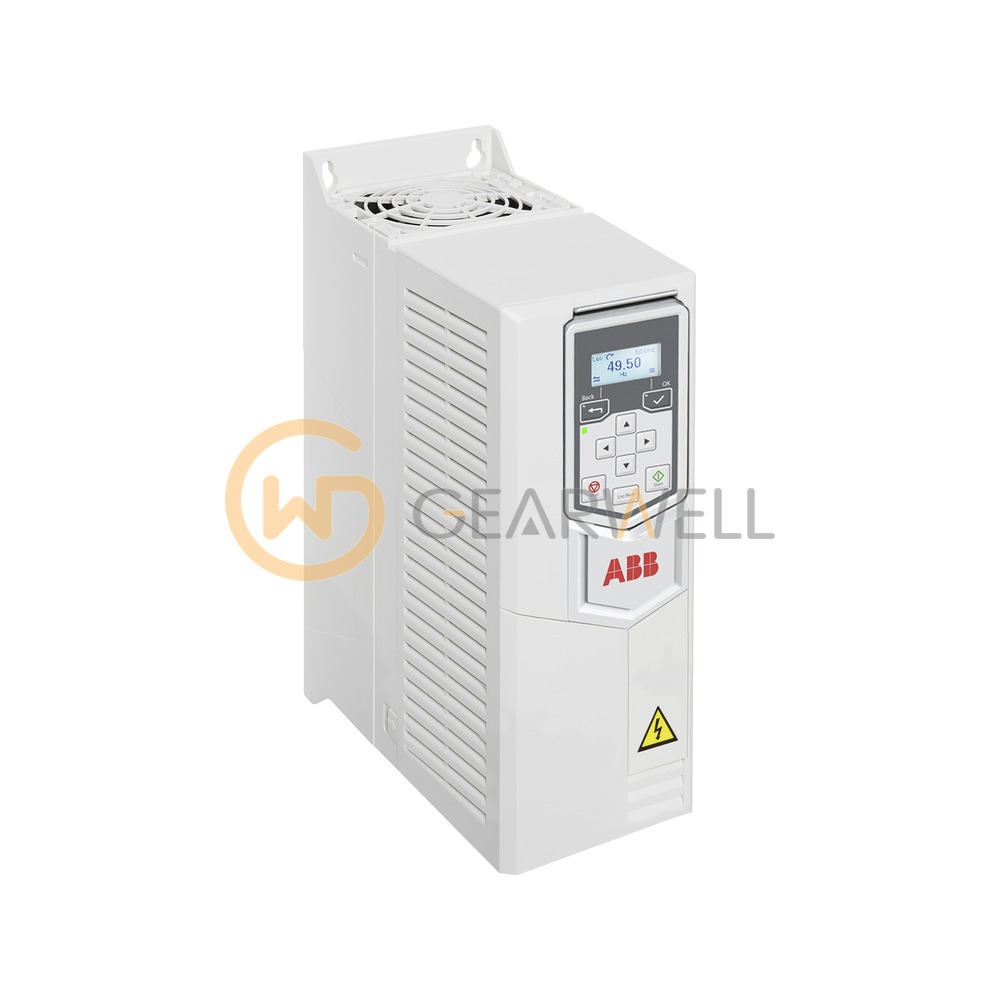

ABB ACS530-01-05A7-4 ACS530 Wall-mounted AC Drive
- Brand
- ABB
- Model
- ACS530-01-05A7-4
- GEARWELL SKU
- GWP-000007657
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R1
- Net weight
- 4.2 kg
- Product ID
- 3AXD50000747535
- Degree of protection
- IP20
- Dimensions (W x H x D)
- 125 x 331 x 223 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS530-01-05A7-4 is an ACS530-01 wall-mounted general purpose drive for three-phase 400 V supplies, rated 2.2 kW in nominal and light-duty use (5.6 A nominal output current), in frame R1. ABB's basic ACS530-01 configuration is IP20 with an ACS-BP-S basic control panel, a choke, a built-in EMC C2 filter, Safe torque off and coated boards, plus a braking chopper in this frame. Options such as an assistant control panel, fieldbus adapters and I/O extensions are added as plus codes.
Technical reference
| Product name | ABB ACS530-01-05A7-4 ACS530 Wall-mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS530-01-05A7-4 |
| Category | Variable Frequency Drives |
| Frame size | R1 |
| Net weight | 4.2 kg |
| Product ID | 3AXD50000747535 |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 125 x 331 x 223 mm |
| Output power (normal use) | 2.2 kW |
| Output current (normal use) | 5.6 A |
