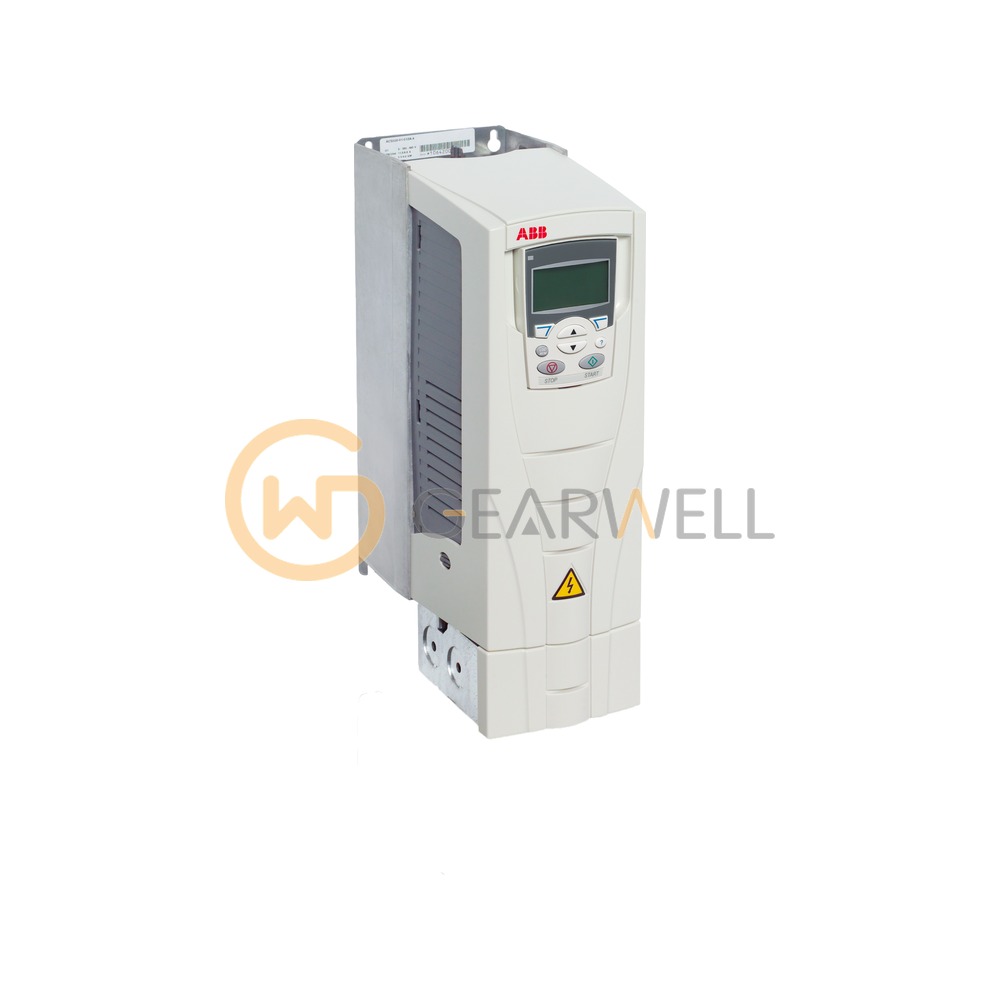

ABB ACS510-01-03A3-4 Wall-Mounted AC Drive
- Brand
- ABB
- Model
- ACS510-01-03A3-4
- GEARWELL SKU
- GWP-000011200
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R1
- Input phases
- 3-phase
- Mounting type
- Wall-mounted
- ABB product ID
- 3ABD00015741-D
- Input frequency
- 47.5 ... 63 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS510-01-03A3-4 is an ACS510-01 wall-mounted AC drive for 380–480 V three-phase supplies, rated 1.1 kW (1.5 hp) with 3.3 A continuous output current for pump and fan use, in frame R1. In ABB's type code, 01 stands for wall mounting with setup and parts for IEC installation. The standard enclosure is IP21, with IP54 available as option +B055, and further options are added to the type code as plus codes.
Technical reference
| Product name | ABB ACS510-01-03A3-4 Wall-Mounted AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS510-01-03A3-4 |
| Category | Variable Frequency Drives |
| Frame size | R1 |
| Input phases | 3-phase |
| Mounting type | Wall-mounted |
| ABB product ID | 3ABD00015741-D |
| Input frequency | 47.5 ... 63 Hz |
| Input voltage Uin | 380 ... 480 V |
| Degree of protection | IP21 |
| Dimensions (H x W x D) | 365 x 225 x 465 mm |
| Rated output power Pn | 1.1 kW |
| Rated output current In | 3.3 A |
