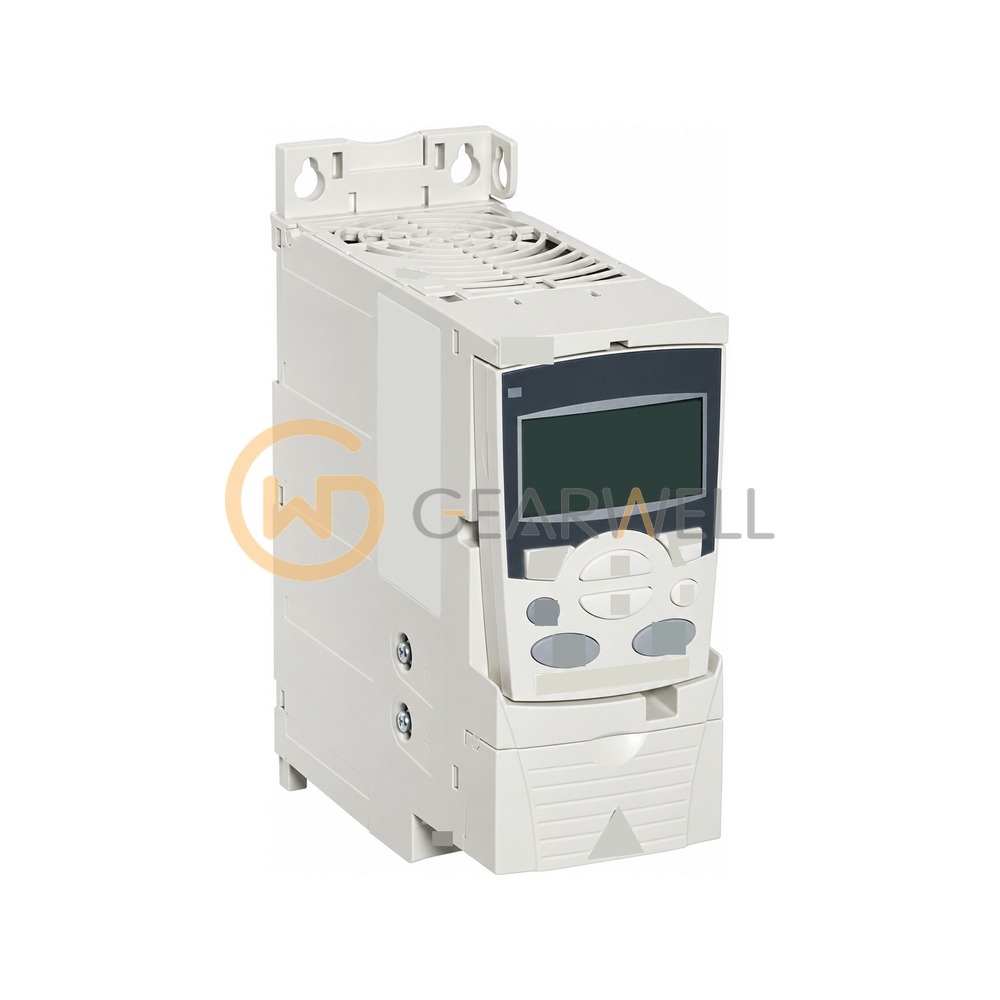

ABB ACS355-03E-01A9-4 ACS355 Machinery AC Drive
- Brand
- ABB
- Model
- ACS355-03E-01A9-4
- GEARWELL SKU
- GWP-000012838
- Category
- Variable Frequency Drives
Key specifications
- Frequency
- 47.5 to 63 Hz
- Frame size
- R0
- Input voltage
- 380 to 480 V
- Efficiency level
- IE2
- Number of phases
- 3-phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS355-03E-01A9-4 is an ACS355 machinery drive for three-phase 380–480 V supplies, rated 0.55 kW (0.75 hp) with 1.9 A continuous output current, in frame R0. The E in the type code means it ships with the internal EMC filter connected and 50 Hz default settings. ABB designs the ACS355 for wall or cabinet mounting to control both induction motors and permanent magnet synchronous motors; it has an internal brake chopper for an external brake resistor and a Safe torque off function, and control panels and fieldbus adapters are added as plus-code options.
Technical reference
| Product name | ABB ACS355-03E-01A9-4 ACS355 Machinery AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS355-03E-01A9-4 |
| Category | Variable Frequency Drives |
| Frequency | 47.5 to 63 Hz |
| Frame size | R0 |
| Input voltage | 380 to 480 V |
| Efficiency level | IE2 |
| Number of phases | 3-phase |
| Degree of protection | IP20 |
| Dimensions (H x W x D) | 169 x 70 x 161 mm |
| Output power (normal use, Pn) | 0.55 kW |
| Output current (normal use, In) | 1.9 A |
