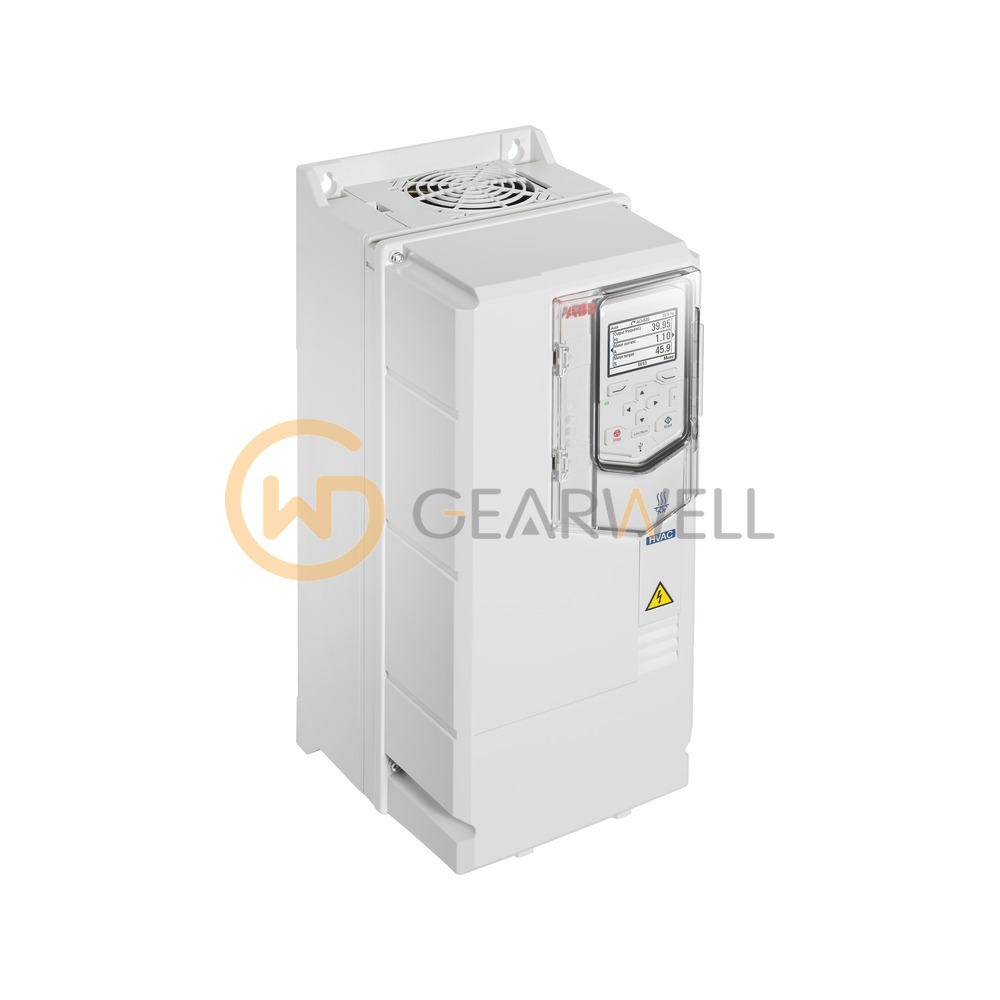

ABB ACH580-01-033A-4+B056 ACH580 HVAC Drive 15 kW IP55
- Brand
- ABB
- Model
- ACH580-01-033A-4+B056
- GEARWELL SKU
- GWP-000007584
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R3
- Net weight
- 13 kg
- Input voltage
- 380 to 480 V
- Degree of protection
- IP55
- Dimensions (W x H x D)
- 206 x 490 x 237 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACH580-01-033A-4+B056 is an ACH580-01 wall-mounted HVAC drive for 380–480 V three-phase supplies, rated 15.0 kW in nominal and light-duty use and 11.0 kW in heavy-duty use at 400 V, with 32.0 A nominal output current, in frame R3. Plus code +B056 gives it an IP55 (UL Type 12) enclosure in place of the standard IP21. ABB's basic ACH580-01 includes an ACH-AP-H Hand-Off-Auto control panel, a choke, an internal EMC C2 filter, Safe torque off and coated boards, with a braking chopper in this frame, and it controls induction, permanent magnet and synchronous reluctance motors.
Technical reference
| Product name | ABB ACH580-01-033A-4+B056 ACH580 HVAC Drive 15 kW IP55 |
|---|---|
| Brand | ABB |
| Model | ACH580-01-033A-4+B056 |
| Category | Variable Frequency Drives |
| Frame size | R3 |
| Net weight | 13 kg |
| Input voltage | 380 to 480 V |
| Degree of protection | IP55 |
| Dimensions (W x H x D) | 206 x 490 x 237 mm |
| Output power (normal use) | 15 kW |
| Output current (normal use) | 32 A |
