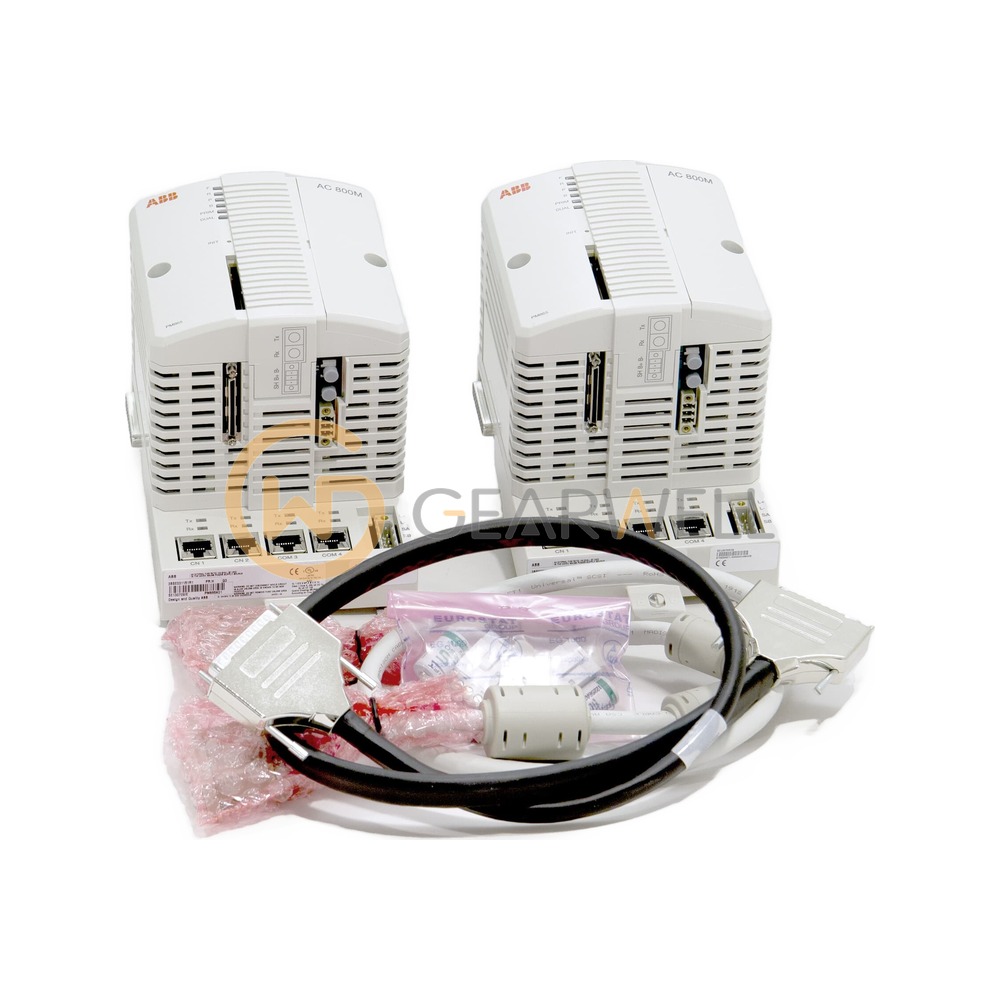

ABB 3BSE031150R1 PM865K02 AC 800M HI Redundant Processor Unit
- Brand
- ABB
- Model
- 3BSE031150R1
- GEARWELL SKU
- GWP-000007580
- Category
- PLCs & I/O
Key specifications
- Net weight
- 2.3 kg
- Configuration
- Redundant processor unit
- Type designation
- PM865K02
- Safety certification
- SIL3
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 3BSE031150R1 is the PM865K02 redundant processor unit for the AC 800M High Integrity controller, made up of two PM865K01 units. Each PM865 CPU has an MPC862P processor at 96 MHz and 32 MB RAM, carries IEC 61508 SIL3 TÜV approval and switches over in max 10 ms in a redundant configuration. It runs on 24 V DC (19.2-30 V DC), is rated IP20 and +5 to +55 °C operating, and has two Ethernet channels for the control network.
Technical reference
| Product name | ABB 3BSE031150R1 PM865K02 AC 800M HI Redundant Processor Unit |
|---|---|
| Brand | ABB |
| Model | 3BSE031150R1 |
| Category | PLCs & I/O |
| Net weight | 2.3 kg |
| Configuration | Redundant processor unit |
| Type designation | PM865K02 |
| Safety certification | SIL3 |
