ABB 3BSE013210R1 DI830 S800 I/O Digital Input Module
- Brand
- ABB
- Model
- 3BSE013210R1
- GEARWELL SKU
- GWP-000007533
- Category
- PLCs & I/O
Key specifications
- Net weight
- 0.3 kg
- Input voltage
- 24 V
- Type designation
- DI830
- Number of channels
- 16
- Sequence of events
- Yes
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

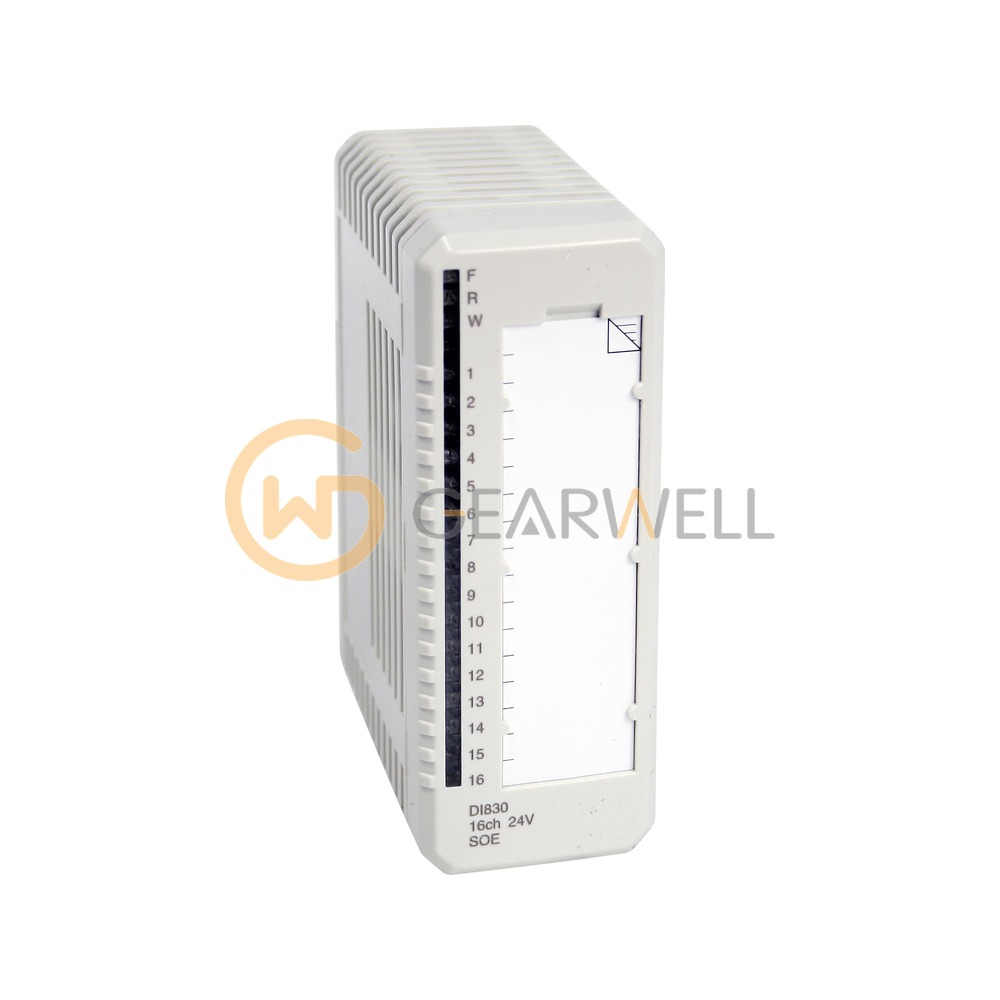

The ABB 3BSE013210R1 is the DI830 S800 I/O digital input module with Sequence Of Events: 16 channels in 2 groups of 8, 24 V d.c., current sink, with an event recording resolution below 0.5 ms. S800 I/O runs on 24 V d.c. (19.2 - 30 V), is rated IP20 and +5 to +55 °C operating, and takes up to 24 I/O modules per I/O station.
Technical reference
| Product name | ABB 3BSE013210R1 DI830 S800 I/O Digital Input Module |
|---|---|
| Brand | ABB |
| Model | 3BSE013210R1 |
| Category | PLCs & I/O |
| Net weight | 0.3 kg |
| Input voltage | 24 V |
| Type designation | DI830 |
| Number of channels | 16 |
| Sequence of events | Yes |
| Dimensions (W x H x D) | 45 x 119 x 102 mm |
