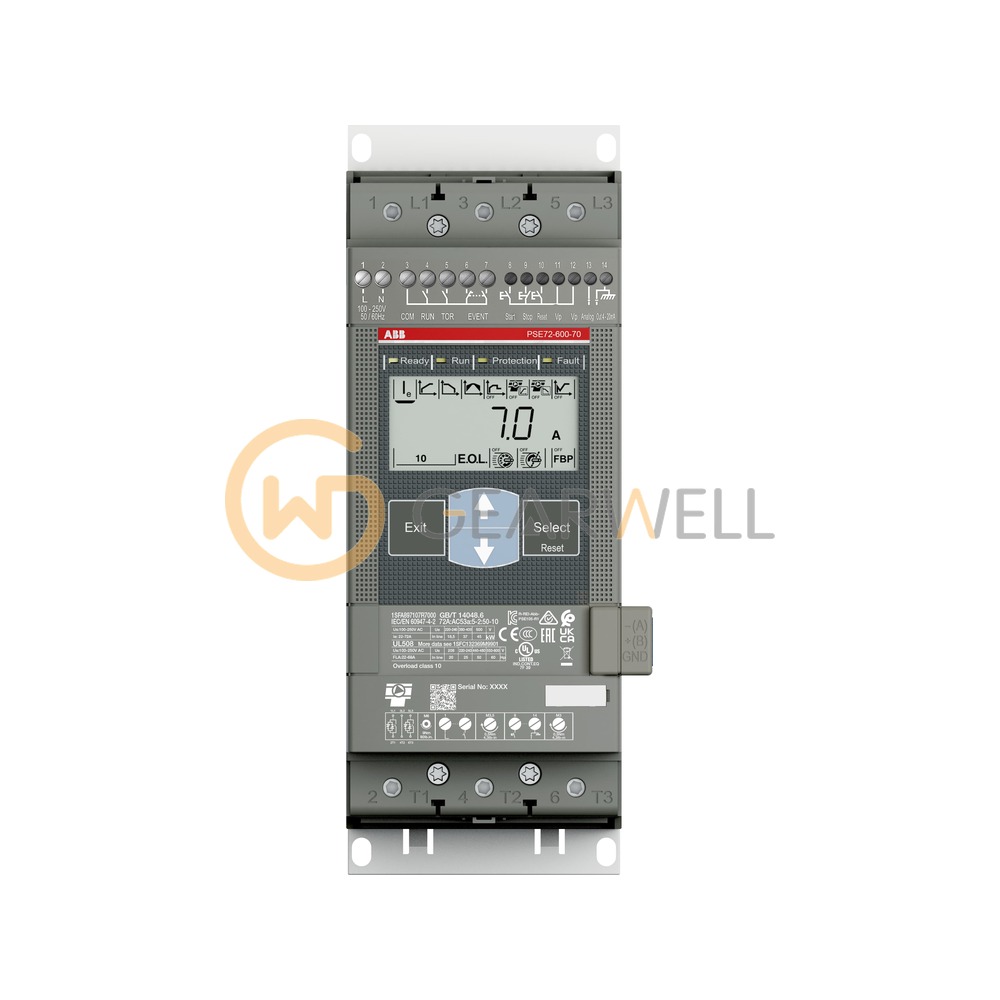

ABB 1SFA897107R7000 PSE72-600-70 Softstarter 72 A
- Brand
- ABB
- Model
- 1SFA897107R7000
- GEARWELL SKU
- GWP-000011167
- Category
- Contactors & Starters
Key specifications
- Net weight
- 2.5 kg
- Communication
- Modbus-RTU
- ABB type designation
- PSE72-600-70
- Dimensions (W x H x D)
- 90 x 245 x 184 mm
- Rated power at 400 V
- 37 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 1SFA897107R7000 is the ABB PSE72-600-70 softstarter for normal starts (class 10, in-line), rated 72 A and 18.5 kW at 230 V, 37 kW at 400 V and 45 kW at 500 V (IEC), and 68 FLA, 50 hp at 440/480 V and 60 hp at 550/600 V (UL/CSA). Rated operational voltage is 208-600 V, control supply is 100-250 V AC, 50/60 Hz, and net weight is 2.5 kg.
Technical reference
| Product name | ABB 1SFA897107R7000 PSE72-600-70 Softstarter 72 A |
|---|---|
| Brand | ABB |
| Model | 1SFA897107R7000 |
| Category | Contactors & Starters |
| Net weight | 2.5 kg |
| Communication | Modbus-RTU |
| ABB type designation | PSE72-600-70 |
| Dimensions (W x H x D) | 90 x 245 x 184 mm |
| Rated power at 400 V | 37 kW |
| Control supply voltage | 100 ... 250 V AC |
| Rated operational voltage | 208 ... 600 V AC |
| Rated operational current (in-line) | 72 A |
