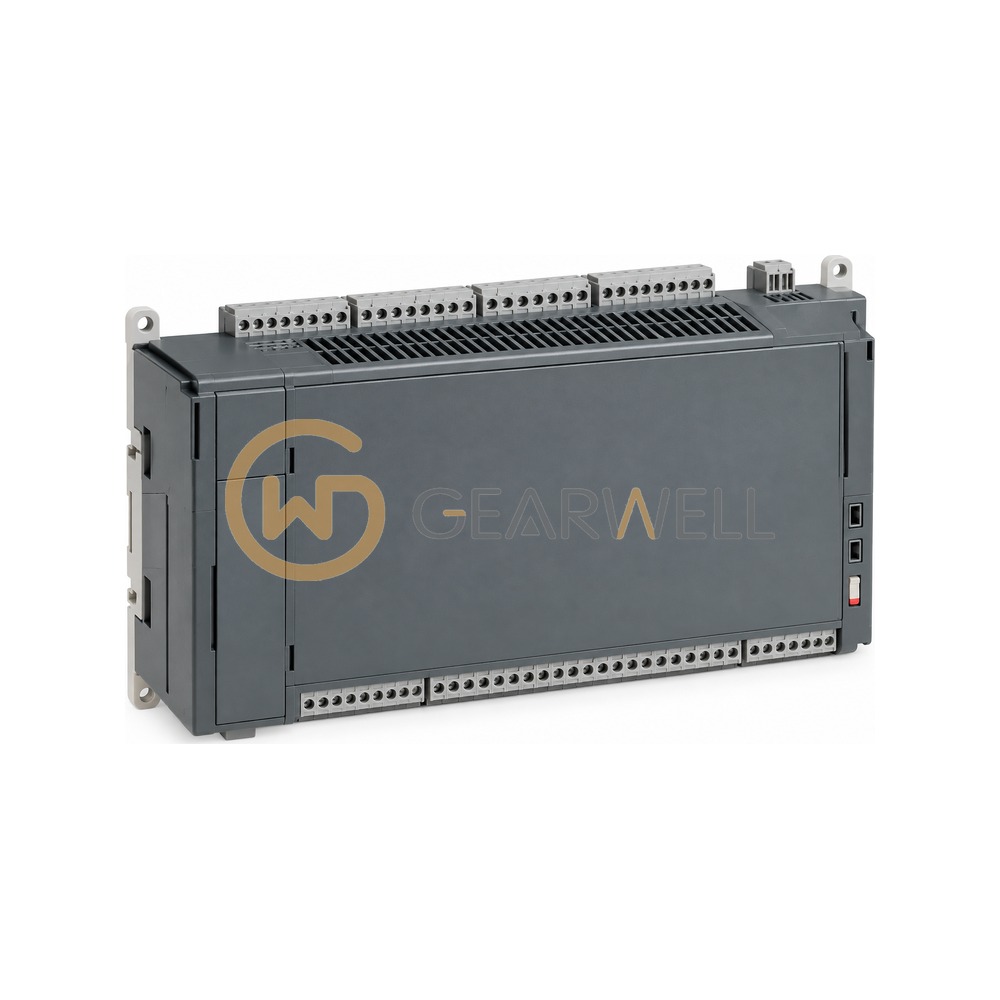

ABB 07 KT 98 Advant Controller 31, 90 Series Basic unit (PLC CPU)
- Brand
- ABB
- Model
- 07 KT 98
- GEARWELL SKU
- GWP-000014661
- Category
- PLCs & I/O
Key specifications
- Supply
- 24 V DC
- Analog inputs
- 8 (Pt100 capable)
- Analog outputs
- 4 (20 mA capable)
- Digital inputs
- 24
- Digital outputs
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 07 KT 98 is a compact PLC of the legacy AC31 series 90 with up to 2 internal communication processors and an integrated CS31 field bus. Its I/O count is identical with the 07 KT 97 (24 DI / 16 DO / 8 DC and 8 AI / 4 AO), program memory is 1000 kB and weight is 1.3 kg. ABB lists versions with Profibus DP, CANopen, Ethernet or ARCNET processors, each with its own GJR5 253 100 order code, so confirm the version on the label.
Technical reference
| Product name | ABB 07 KT 98 Advant Controller 31, 90 Series Basic unit (PLC CPU) |
|---|---|
| Brand | ABB |
| Model | 07 KT 98 |
| Category | PLCs & I/O |
| Supply | 24 V DC |
| Analog inputs | 8 (Pt100 capable) |
| Analog outputs | 4 (20 mA capable) |
| Digital inputs | 24 |
| Digital outputs | 16 |
| Configurable digital I/O | 8 |
| Processing time per 1 kB program | 0.07 ms |
