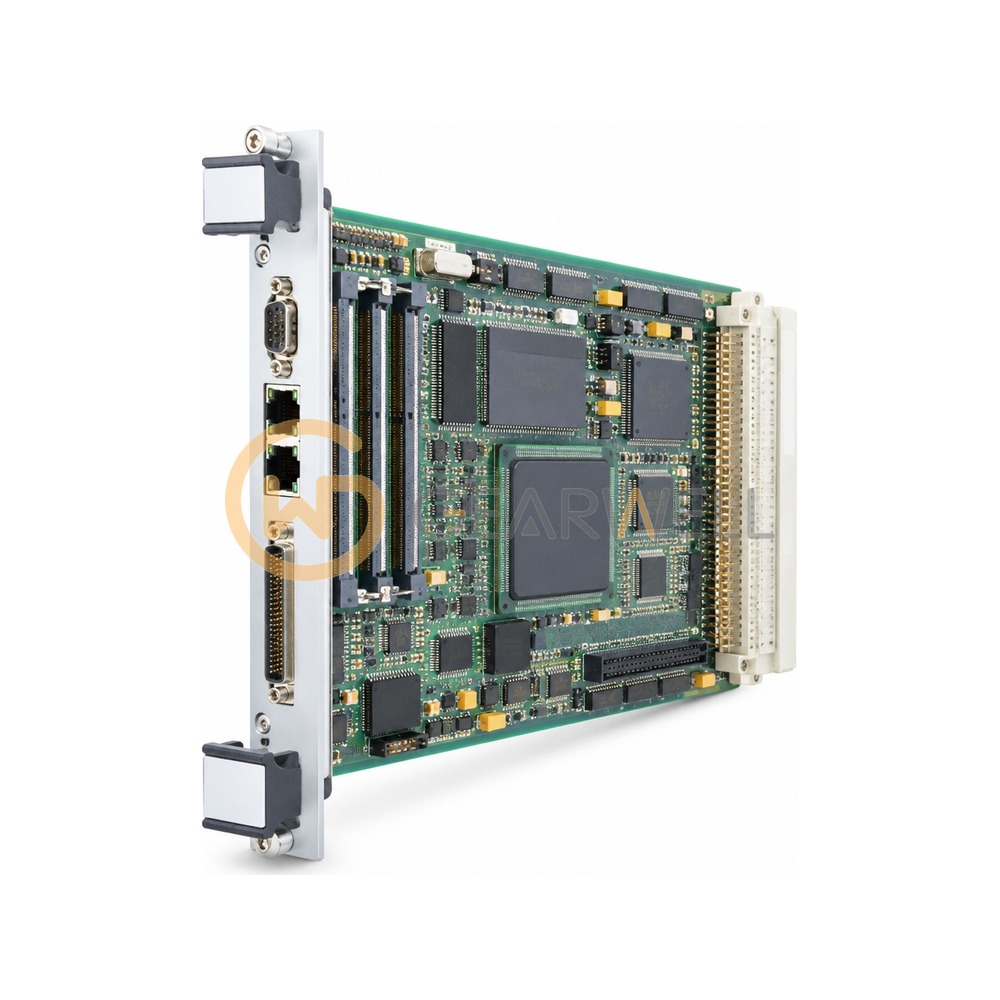

Abaco VMIVME-7750-734001 Pentium III VME Single Board Computer
- Brand
- Abaco
- Model
- VMIVME-7750-734001
- GEARWELL SKU
- GWP-000033127
- Category
- HMIs & Industrial PCs
Key specifications
- Chipset
- Intel 815E, 133 MHz system bus
- Ethernet
- Dual 10BaseT/100BaseTX
- Evidence
- GE Fanuc Embedded Systems spec sheet 800-007750-000 V (archived copy of hosted original); VMIC manual 500-007750-000 Rev. D (hosted at bitsavers mirror); line now Abaco Systems
- SDRAM (B=3)
- 64 Mbyte
- Form factor
- 6U single-slot Eurocard, 233.4 x 160 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Abaco VMIVME-7750-734001 Pentium III VME Single Board Computer |
|---|---|
| Brand | Abaco |
| Model | VMIVME-7750-734001 |
| Category | HMIs & Industrial PCs |
| Chipset | Intel 815E, 133 MHz system bus |
| Ethernet | Dual 10BaseT/100BaseTX |
| Evidence | GE Fanuc Embedded Systems spec sheet 800-007750-000 V (archived copy of hosted original); VMIC manual 500-007750-000 Rev. D (hosted at bitsavers mirror); line now Abaco Systems |
| SDRAM (B=3) | 64 Mbyte |
| Form factor | 6U single-slot Eurocard, 233.4 x 160 mm |
| Ordering code | VMIVME-7750-734001 (A B C D E F = processor / SDRAM / CompactFlash / reserved / reserved / front panel) |
| Processor (A=7) | 1.26 GHz Pentium III with 512 Kbyte cache |
| Front panel (F=1) | IEEE 1101.10 front panel |
| CompactFlash (C=4) | 64 Mbyte |
| Power requirement | +5 VDC, 6 A typical, 7 A maximum |
| Operating temperature | 0 to 50 °C |
